2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface

MOQ : 1000

Delivery Time : 6weeks~8weeks

interface : QSPI

Payment Terms : T/T

name : TFT color display

view angle : free view angle

resolution : 320*375

Model Number : HX0209S002

Driving IC : 9855

Brand Name : HuaXin

Supply Ability : 100K per month

Display Technology : Square LCD Display

Price : negotiation

size : 2.09"

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Certification : ISO14001/ISO9001/IATF16949

Place of Origin : China

Contact Now

2.09 Inch square Type TFT Display with 320*375 Resolution and QSPI Interface 500c/d
Product Specifications
Part NO. HX0209S002
Display Type tft display
Diagonal Screen Size 2.09 inch tft display
Active Area (mm) 34.18*40.05
Panel size(mm) 36.33x43.35x1.46
Resolution 320*375
Interface QSPI
View angle ALL
Brightness 500c/d
Driving IC 9855

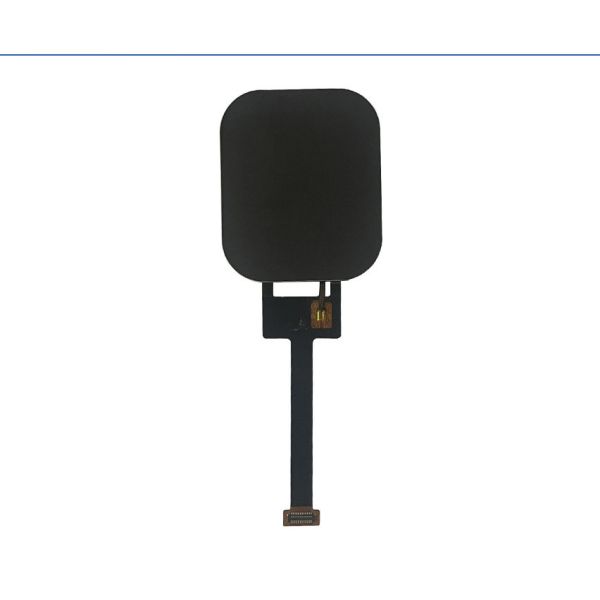

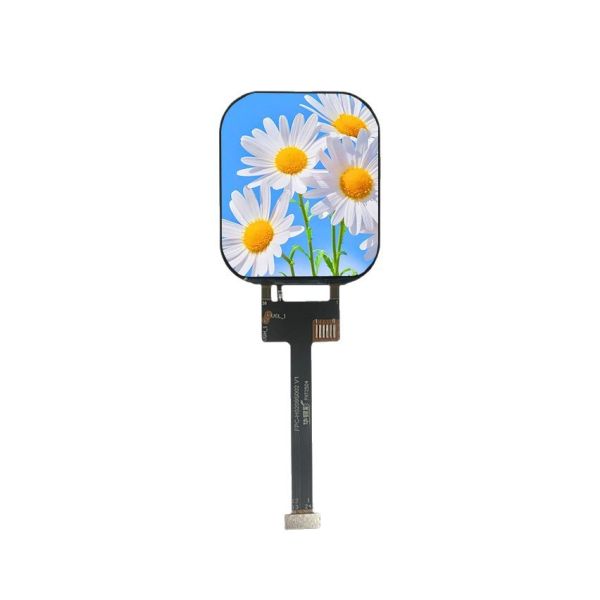

Product Images

2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface

2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface

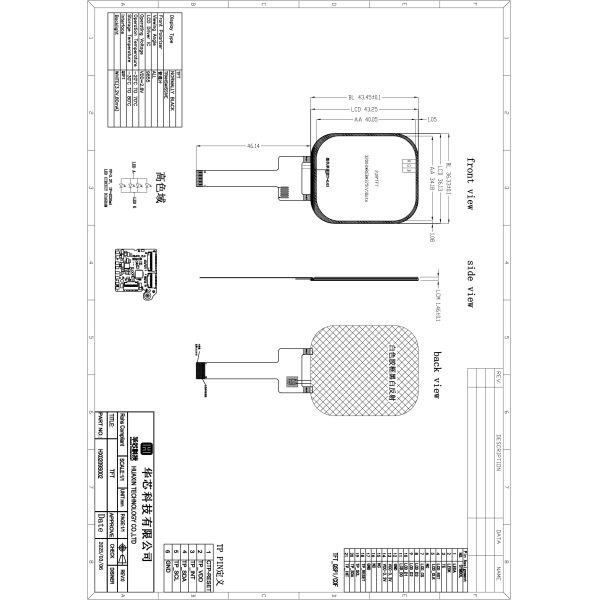

Technical Drawing


2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface


TFT Technology Overview
TFT substrate input and CF substrate input manufacturing process:
2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface
TFT structure diagram:
2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.
Company Advantages
  • Cost-effective factory base located in inland city
  • Advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineering team with 20+ years LCD experience
  • Custom product design capabilities
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS LCD Module Certification
Product Portfolio
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
  • Registered Capital: 20 million
  • Current Staff: 500+ employees
  • R&D Team: 10% of workforce
  • Quality Control: 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: Excellent resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capabilities
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption compared to other technologies
  • Size Flexibility: Available in various sizes from small handheld to large panels
  • Backlighting: Compatible with LED backlighting systems
  • Application Range: Suitable for diverse industrial and consumer applications
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio in certain conditions
  • Backlighting requirements affect power consumption
  • Response time limitations may cause motion blur
  • Limited flexibility in physical form factors
  • Limited color gamut compared to advanced display technologies
